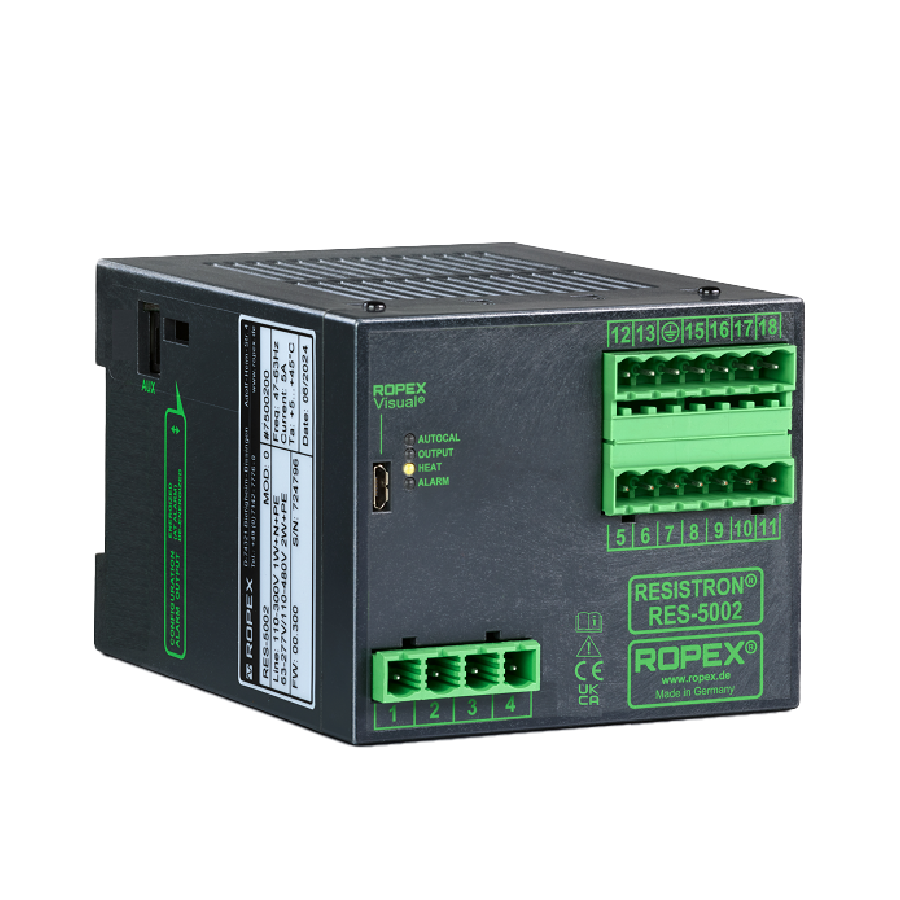

ROPEX RES-5002

The ROPEX Resistron RES-5002 controller utilizes microprocessor technology for sensorless, closed-loop control of impulse heating elements. The ROPEX RES-5002 is designed for simple plug-in system integration.

The use of ROPEX Resistron controls goes beyond impulse heat sealers, form fill machines, and converting equipment. ROPEX Resistron controllers provide a solution for an extensive range of heating applications:

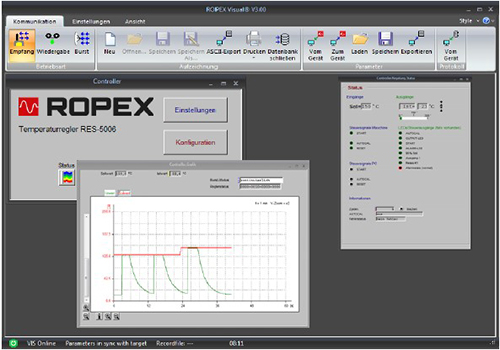

ROPEX Visual® enables you to connect directly to the RES-5002 Resistron controller via Micro-USB, giving you direct access to controller settings and error codes.

Ropex RES-5002 Features:


• PLC interface (Analog)


• Analog input for Setpoint with potentiometer or 0…10 VDC


• Analog output 0…10 VDC for ACTUAL temperature


• 24 VDC control signals for START, AUTOCAL and RESET


• Automatic secondary voltage and current configuration


• Automatic phase angle compensation (AUTOCOMP)


• Automatic frequency adjustment


• Automatic zero calibration (AUTOCAL)


• Heatseal band temperature (up to 300°C)


• Heatseal band alloy (A20 (Alloy-20))


• Free ROPEX Visual® Windows PC software

Ropex RES-5002 Part Numbers:


• Power Supply 110...480 VAC


• Ropex Resistron RES-5002/110...480 VAC


• Ropex Part No. 7500200

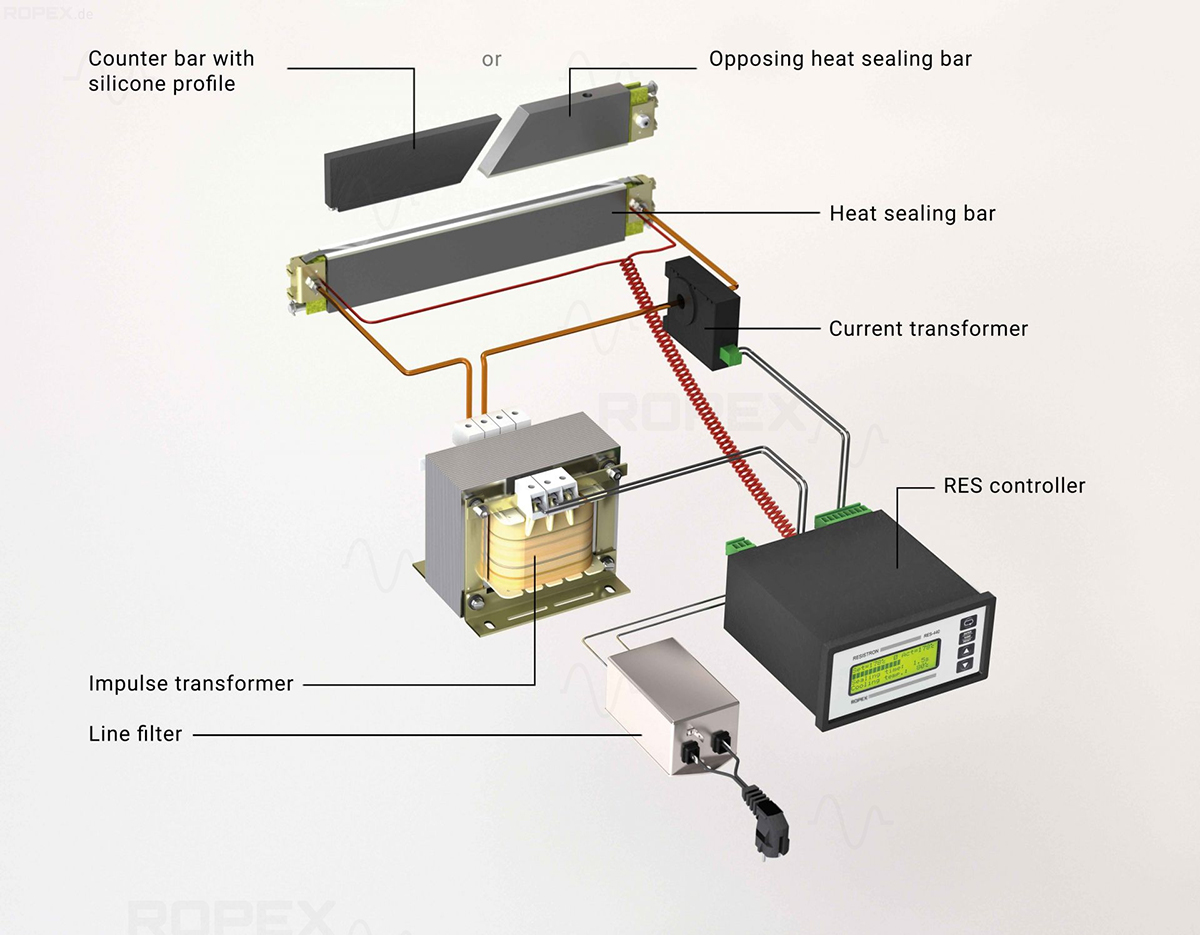

Ropex Accessories:


• Line filter: LF-06480, LF-10520, LF20520, LF30520, LF50520


• Current transformer: PEX-W5


• Impulse Power Transformer: TR-X


• Twisted Cable (RES voltage measurement cable): UML


• High Current Cable (RES current load cables): C-TC
